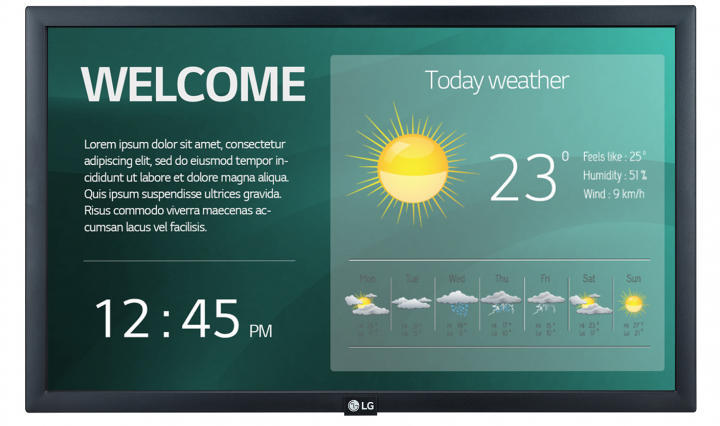

22" Signage with More Utility for Commercial Space22SM3G delivers information and performs guide with more effective ways in various commercial space, which provides more convenient solution thanks to its upgraded webOS platform.  High Performance SoC with webOSBuilt-in Quad Core SoC can execute several tasks at once while providing smooth content playback without the need for a media player. Also, LG webOS smart signage platform enhances user convenience with intuitive GUI and simple app development tools.  Various Sensor ApplicationsLG webOS smart signage platform easily supports connections with external sensors such as GPIO, NFC/RFID, temperature sensors, etc, via USB plug-in. The overall cost for maintenance is reduced as there's no need to purchase additional software or media players.  A Wide Range of InterfacesThrough its diverse interfaces, users can connect the display with various sources for optimal use. Also, the failover function supports users preparing backup sources in case an unexpected error occurs.  USB Plug & Play22SM3G supports USB Plug & Play feature, so users can easily set content playback using a USB.  Content SharingContent Mirroring among devices is more convenient on a Wi-Fi network.  Real-time PromotionWith Beacon and BLE (Bluetooth Low Energy), shop managers can provide coupons and information in real-time.  Wireless Solution22SM3G operates as a virtual router which can be a wireless access point for mobile devices.  Remote Monitoring and ControlThrough the Control Manager, the embedded web monitoring solution, you can control and monitor the status of multiple 22SM3G displays in different locations in real-time. It is available on internet-connected devices, allowing you to flexibly and rapidly respond to emergency situations anywhere.  Real-time Care Service with LG Signage365CareThe maintenance gets easier and faster with the optional service Signage365Care*, a cloud service solution provided by LG service. It remotely manages status of displays in client workplaces for fault diagnosis and remote-control services, ensuring stable operation of the client’s business.  * The availability of Signage365Care service can differ by region, so please contact the LG sales representative in your region for further details.


Screen Size21.5Panel TechnologyIPSAspect Ratio16:9Native Resolution1,920 x 1,080 (FHD)Refresh Rate60 HzBrightness (Typ. )250 cd/m2Contrast Ratio1,000 : 1Viewing Angle (H x V)178 x 178Response Time14ms (G to G)Surface Treatment (Haze)25%Life Time (Min. )30,000 HrsOperation Hours (Hours / Day)16 / 7Portrait / LandscapeNo / YesConnectivity InputHDMI (2, HDCP2.2), USB 2.0 Type A, Audio InOutput-External ControlRS232C In (Phone-jack), RJ45 (LAN) In, IR InMechanical Specification Bezel ColorBlackBezel Width16.3 mm (Even Bezel)Weight (Head)3.34 kgPacked Weight4.74 kgMonitor Dimension (W × H × D)510.3 x 302.1 x 53.8 mmCarton Dimensions (W × H × D)565.0 x 357.0 x 103.0 mmHandleNoVESA Standard Mount Interface100 x 100 mmFeature Key FeatureInternal Memory 8GB, Built-in Wi-Fi, Temperature Sensor, Local Key Operation, Embedded CMS (Local Contents Scheduling, Group Manager), USB Plug & Play, Fail Over, Background Image (Booting Logo Image, No Signal Image), PIP, PBP (2), Screen Share, Play via URL, Setting Data Cloning, SNMP, ISM (Image Sticking Minimization) Method, Control Manager, Crestron Connected® (Network based control), Smart Energy Saving, PM Mode, Wake on LAN, Beacon, HDMI-CEC (Compatibility may differ by equipment), SI Server Setting, webRTC, Pro:IdiomEnvironment Conditions Operation Temperature0 °C to 40 °COperation Humidity10 % to 80 %Power Power SupplyAC 100-240 V~, 50 / 60 HzPower TypeBuilt-In PowerPower Consumption (Typ. / Max. )30 W / 33 WPower Consumption (Smart Energy Saving)15 W ± 5 %Sound SpeakerYes (1 W x 2 ea)Certification SafetyCB / NRTLEMCFCC Class A / CEErPYes (EU Only)ePEAT (US Only)NoOPS Compatibility OPS Type CompatibleNoOPS Power Built InNoSoftware Compatibility Content Management SoftwareSuperSign CMSControl and Monitoring SoftwareSuperSign Control / Control+Signage365CareYes (The availability of the Signage365Care service differs by region. )Accessory BasicRemote Controller, Power Cord, QSG, HDMI Cable, Phone to RS232C Gender, External IR, IR Sheet
