Description

Digital Signage and real-time information deployed easily

Initiating effective communication to your target audience has never been easier to plan, install and operate. Deploying Signage with consistently updated information, real-time content adaption and scheduling has never been so simple.

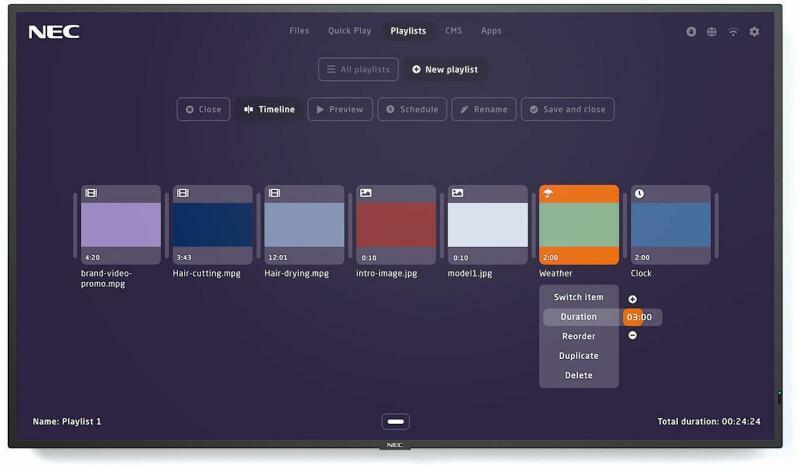

The MultiSync® ME-MPi4 displays offer out-of-the-box playback for local retailers, restaurants and small business enterprises. With the NEC MediaPlayer you can deliver dynamic advertising and infotainment to your customers whilst benefiting from the efficiencies gleaned through digitisation.

Future-proof and upgradable, the NEC MediaPlayer software is powered by a pre-installed modular SoC Raspberry Pi module. Enabling remote operation of single and multiple display installations, benefit from flexible usage of many media types and a scheduling function for smart content management. For specific feature demands, the NEC MediaPlayer grants easy switching to the integrated Content Management Systems directly.

Benefits

• Modern and slim design  – robust yet elegant allowing for an unobtrusive integration into any application and environment.


• Intuitive Plug & Play solution  – even when not familiar with using digital signage, users can facilitate stunning signage creation for immersive real-time visual experiences


• Install third party software  – expand the NEC MediaPlayer functionality via additional Apps or even switch to your preferred Content Management Systems (CMS) directly from of the NEC MediaPlayer


• Everything under control  – one single interface is needed to manage both the NEC MediaPlayer and the display directly, via a web-interface or the NEC Display remote control.


• Unhindered readability  – no reflections from windows or other light sources means no disruption to the visibility of signage content or meeting room presentation

Specificatii tehnice:

DISPLAY


Panel Technology
IPS with Direct LED backlights

Screen Size [inch/cm]
55 / 138.8

Aspect Ratio
16:09

Brightness [cd/m2]
400

Contrast Ratio
≥ 8000:11

Viewing Angle [°]
178 horizontal / 178 vertical (typ. at contrast ratio 10:1)

Colour Depth [bn]
1.073 (8bit + FRC)

Response Time (typ. ) [ms]
8

Panel Refresh Rate [Hz]
60

Haze Level [%]
Standard (1)

Supported Orientation
Landscape; Portrait

SYNCHRONISATION RATE


Horizontal Frequency [kHz]
26 - 135

Vertical Frequency [Hz]
23 - 86

RESOLUTION


Native Resolution

3840 x 2160

Supported Resolutions

4096 x 2160;3840 x 2160;2560 x 1600;2560 x 1440;1920 x 2160;1920 x 1200;1920 x 1080;1650 x 1050;1600 x 1200;1440 x 900;1400 x 1050;1366 x 768;1360 x 768;1280 x 1024;1280 x 720;1024 x 768

CONNECTIVITY


Input Video Digital
1 x DisplayPort (with HDCP); 2 x HDMI (with HDCP)

Input Audio Digital
1 x DisplayPort; 2 x HDMI

Input Control
LAN 100Mbit; remote control wire (3,5mm jack); RS232

Input Data
1 x USB 2.0 (MediaPlayer)

Output Audio Analogue
1 x 3,5 mm jack

Input Detect
Custom; First; Last

OPEN MODULAR INTELLIGENCE


Intel® SDM
accepts Intel® Smart Display Modules Large and Small up to 66 W

Compute Module Slot
RPi Compute Module 4

SENSORS


Temperature Sensor
Integrated, 3 sensors, triggered actions programmable

ELECTRICAL


Power Consumption Eco/max. [W]
120 shipping

Power Savings Mode [W]
< 0.5; < 2 (Networked Standby)

Power Management
VESA DPMS

Power Supply
100-240 V AC; 50/60 Hz; internal

ENVIRONMENTAL CONDITIONS


Operating Temperature [°C]
+0 to +40

Operating Humidity [%]
20 to 80

Storage Humidity [%]
10 to 90

Storage Temperature [°C]
-20 to 60

MECHANICAL


Dimensions (W x H x D) [mm]
1,241. 8 x 712.6 x 62.6

Weight [kg]
19.8

Bezel Width [mm]
13.9

VESA Mounting [mm]
4 holes; 400 x 400 (FDMI); M6

Ingress Protection
IP5x (front); IP2x (back)

Packaging Dimensions (W x H x D) [mm]
1,430 x 920 x 250

Packaging Weight [kg]
29.4

Colour Bezel
Pantone 426M (black)

Material
Metal

MEDIAPLAYER


Supported File Storage / File System
USB 2.0 / FAT16, FAT32

Internal Storage
32GB eMMC (2GB occupied by OS, 28GB available for files)

Processor
Cortex-A72 (ARMv8) 64-bit SoC @ 1.5GHz

Supported Image Formats
JPG / JPEG; PNG

Supported Video Formats
MP4 / MOV /AVI / MPEG/ WMV / MPG / M4V / VOB / MKV (H. 265); MPEG-2; M4K; VP8 / VP9; HTML5

Supported Audio Formats
MP3; AAC; AC-3

AVAILABLE OPTIONS


Accessories
Feet (ST-401/ST-43M); Soundbar (active: SP-ASCM-IQ2 / SP-ASCM-2); Speaker (SP-RM3a); Trolley (PDMHM-L); Wall mount (PDW C L and P, PD02W T M L, PD03W T M P)

GREEN FEATURES


Energy Efficiency
Energy consumption: 118 kWh/1000 h; Energy efficiency class: G; LED backlight

Ecological Standards
EnergyStar 8.0

ADDITIONAL FEATURES


Special Characteristics
DICOM Simulation; HDMI ARC; Powered USB Port (10 W); Removable Logo

Safety and Ergonomics
Energy Star 8.0

Pixel Failure Class
ISO 9241-307, Class 1

Audio
Integrated Speakers (10 W + 10 W)

Shipping Content
2x AAA batteries; Display; HDMI Cable; Power Cable; Pre-installed MPi4 MediaPlayer Kit; Remote Control; Setup Manual

Warranty
3 years warranty incl. backlight; additional services available; optional 4. + 5. year warranty extension2

Operating Hours
18/7

External Control
AMX NetLinx Support; ASCII Control Commands; HDMI CEC; HTTP Browser; PJLink; Scheduled Timer; SNMP

Remote Management
Automated Email Alerts; NEC NaViSet Administrator 2

Security
Disable HW Buttons; Disable IR Functionality; Emergency Notification

Resistance to Fire
Metal backcover, plastic material certified acc. to UL94-5VB
